Overview

A TV built for your business

Capture your customers’ imagination and share your brand more effectively with Samsung’s Business TV BED-H series. Offering UHD picture quality and flexible functionality through simplified operation, the BED-H series is the ideal display solution for a wide range of business needs.


Control content with your personal device
Samsung Business TV App

Available on Android or iOS mobile devices, the Samsung Business TV App allows users to remotely manage, schedule, and display customized content effortlessly. It’s so easy to create eye-catching content using a variety of ready-to-use templates.*

*Images simulated for illustrative purposes. Actual user experience may differ. Actual UI may differ and is subject to change without notice.


Smooth device management and configuration
Tizen Enterprise Platform

The Tizen Enterprise Platform* enables efficient management of multiple devices, providing all the tools for easy deployment, with integrated service infrastructure and streamlined maintenance.

*This feature’s availability may vary by region. View lifelike clarity in powerful 4K

Crystal UHD Processor 4K

Samsung’s industry-leading video processing technology enhances every piece of content for clarity and consistency. Intelligent upscaling technology, powered by Samsung’s Crystal UHD Processor 4K, elevates lower-resolution video to UHD, providing a professional picture quality.

*Images simulated for illustrative purposes. Actual viewing experience may vary according to types of content and format. Rich darks and bright lights

High Dynamic Range

High Dynamic Range increases the ratio between the lightest and darkest areas of an image, enabling viewers to enjoy an enormous spectrum of colors and stunning visual detail in a broad range of bright and dark scenes.

*Multi-code IR function requires extra remote controller.

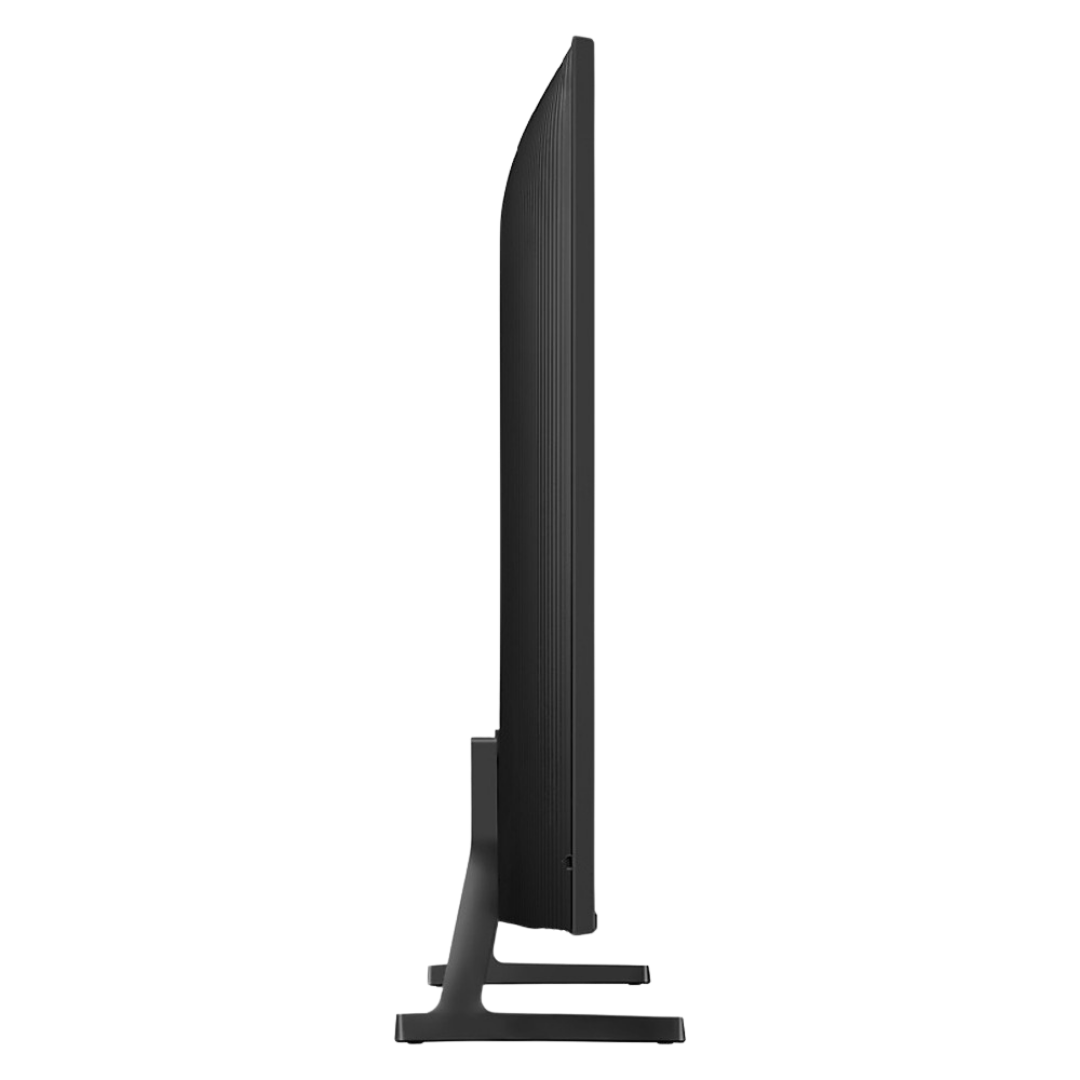

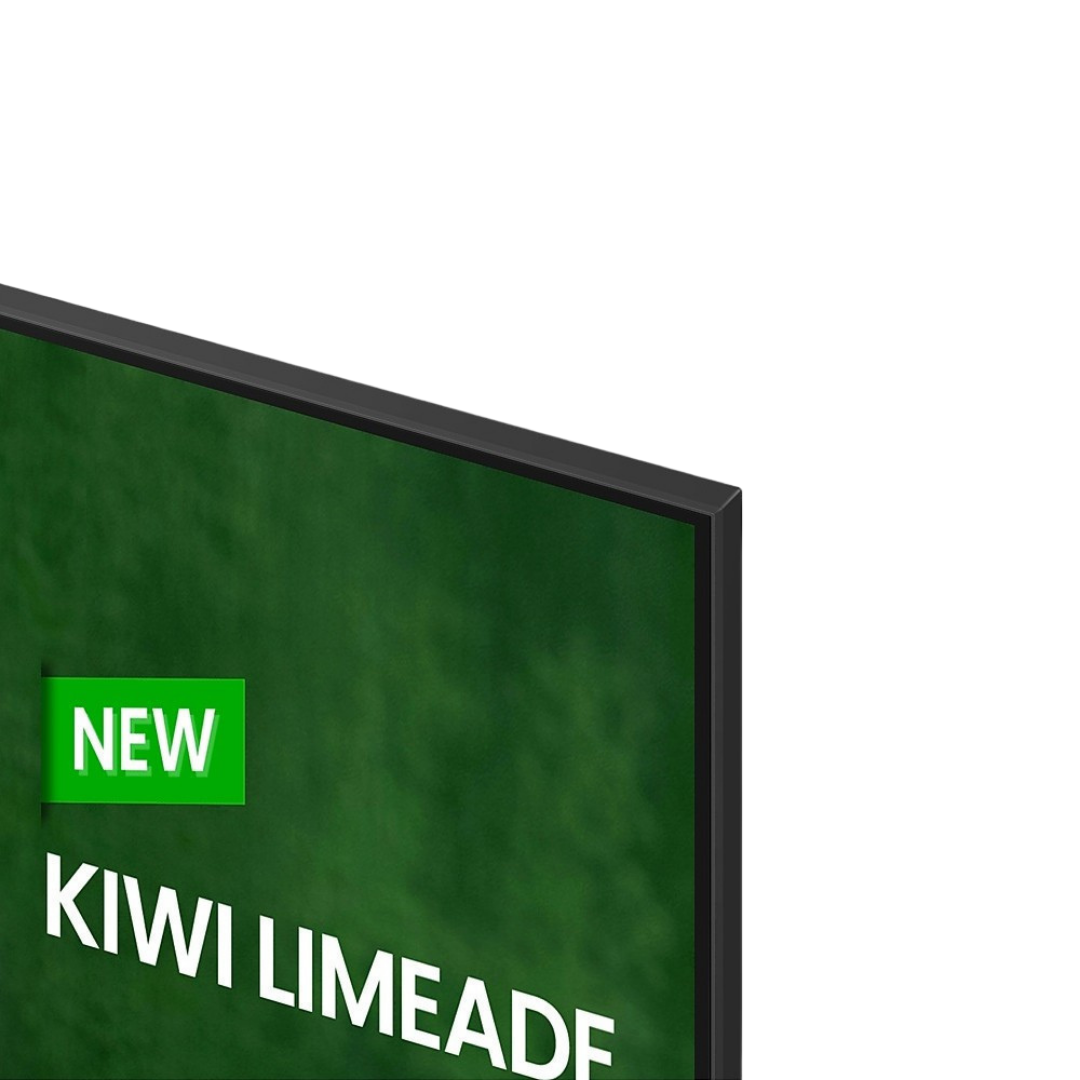

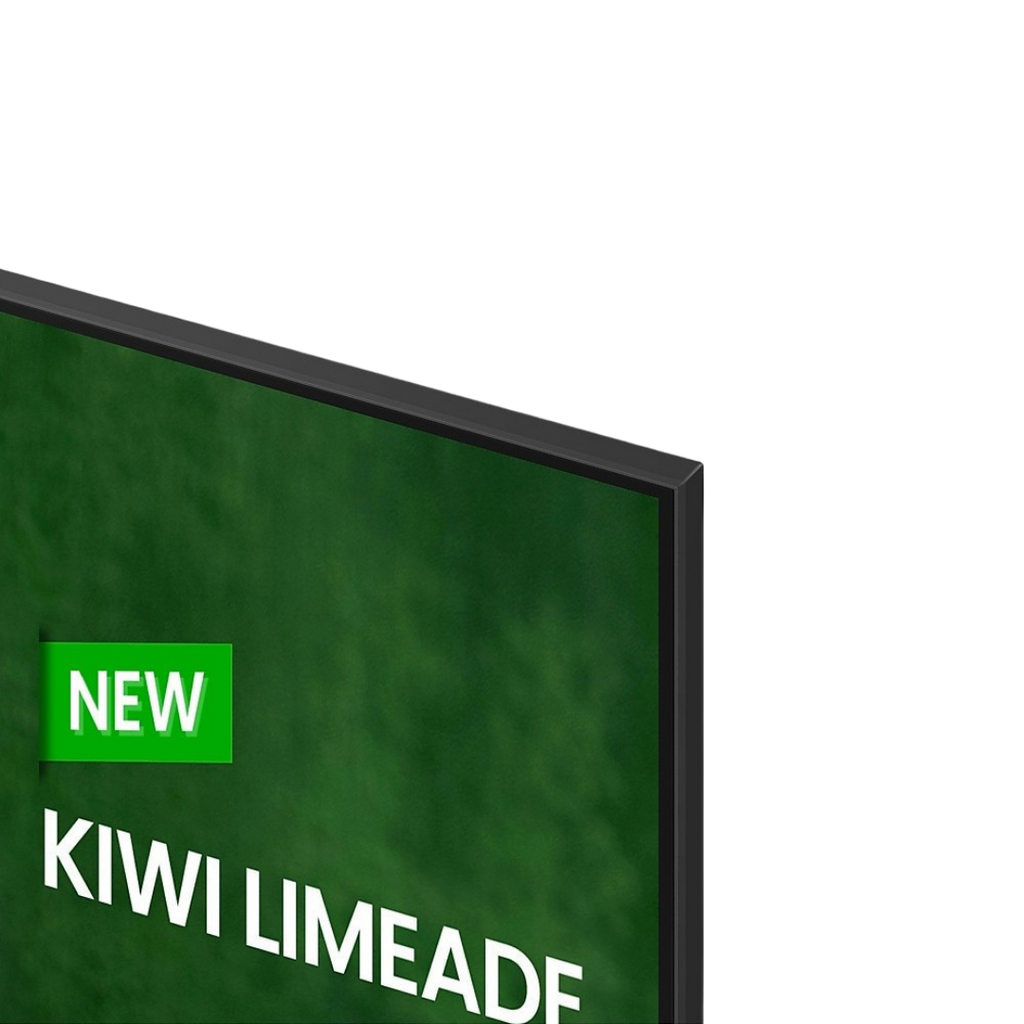

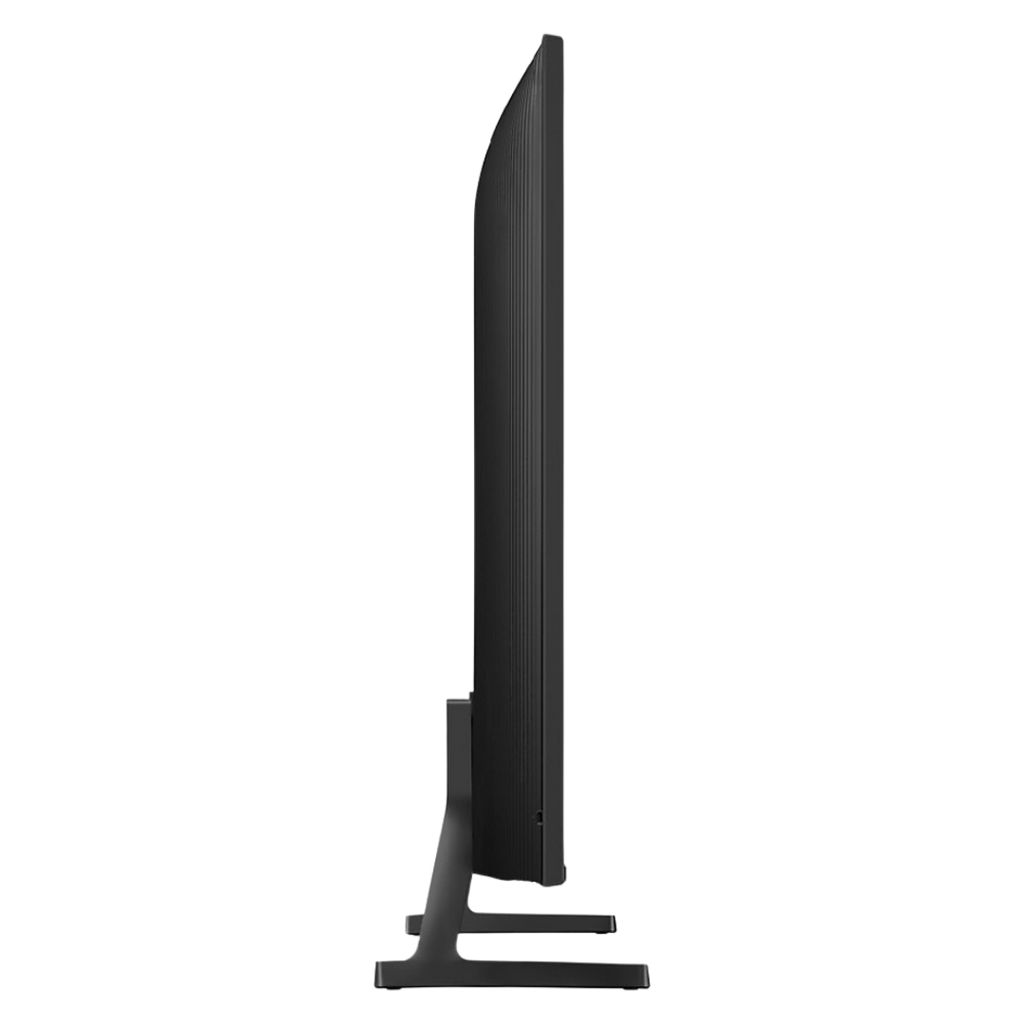

Sleek design that maximizes space
Slim, 3-Sided Bezel-less Design

Crafted with an effortless minimalistic style from every angle, the sleek and elegant design draws you to the purest picture and allows for seamless, harmonious integration into any environment.

*Content service availability and user interface may vary according to customer environment.


Keep content safe with pincode system
Play Lock

Lock your TV with a pin-code system,* preventing unauthorized users or outsiders from tampering with the screen. This minimizes the chance of unforeseen errors, while ensuring that only the content you have selected is played.

*This feature’s availability may vary by region.


Change the way you manage your display
Samsung VXT

Samsung VXT* is a cloud-based solution that brings together content management and remote device management capabilities. It allows users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.

*This feature’s availability may vary by region. The Samsung VXT S-Series plan is only available for the BED-H series. Actual UI may differ and is subject to change without notice. Turn your displays into digital art canvasesDigital Art Solutions with Niio Partnership

Transform your screens into stunning art galleries for enhanced guest experience. Samsung has joined forces with Niio,* a global digital art solution platform, offering easy access to art. Using the preloaded Niio App, select from artwork with no need for an additional device, or having to deal with the complexity of managing commercial rights.

*Additional subscription for Niio Art is required. Please refer to Niio’s subscription plans on their website for details.

Specifications

Panel
Size

98"

Type

50Hz E-LED BLU

GO/KR/ZX : 60Hz E-LED BLU

Resolution

3,840 x 2,160

Brightness(Typ.)

400nit

Response Time(G-to-G)

8ms

Color Gamut

98%(sRGB)

Operation Hour

16/7

Screen Curvature

N/A, Flat


Connectivity
INPUT
RGB

N/A

VIDEO

HDMI x 3

AUDIO

N/A

USB

USB (2)

RF

1 Terrestrial / 1 Cable / 0 Satellite

NZ : 1 Terrestrial / 0 Cable / 1 Satellite

OUTPUT
RGB

N/A

VIDEO

N/A

AUDIO

Optical

Power Out

N/A


External Control

RJ45

External Sensor

N/A

Wireless

WiFi 5, Bluetooth 5.2 supported


Design
Bezel Type

3 Bezel-less

Color
Front

GRAPHITE BLACK

Stand

BLACK

Stand Type

FLAT FEET

Swivel (Left/Right)

N/A


Power
Type

Internal

Power Supply

GO/ZC : AC110-120V 50/60Hz, EN/KR/XL : 220-240V 50/60Hz, XM/XD/XS/XV : AC100-240V 50/60Hz

Power Consumption
Max

GO : 495, ETC : 490

Energy Saving Mode (W)

N/A

Stand-by (W)

N/A

Typical

GO : 308, XY/NZ/XV : 332, XS/XL : 322, KR : 224, EN/XU : 178


Mechanical
Dimension (mm)
Set without Stand

2,181.1 x 1,244.1 x 63.5

Set with Stand

2,181.1 x 1,298.2 x 402.3

Package

2,369 x 1,404 x 275

Weight (kg)
Set without Stand

51.8

Set with Stand

53.4

Package

76.0

Bezel Width w/ BM (mm)

11.1/14.9/11.1/11.1(U/D/L/R)

Black Matrix Size

6.57/1.65/6.57/6.57(U/D/L/R)

VESA
Screw Size

M8

Screw Depth

19-21

VESA Spec

600 x 400


Certification
Safety

60065, 62368-1

EMC

Class B


Accessory
Included

Remote Control, Batteries, User Manual, Power Cable

Optional
Stand

Yes

Mount

N/A

Specialty

N/A

Media Player

USB M/player


Video
Picture Engine

Crystal Processor 4K

HDR10+

Support


Audio
Dolby Decoder

MS12 2ch

Object Tracking Sound

OST Lite

Q-Symphony

Yes

Sound Output (RMS)

20W

Speaker Type

2CH (10W+10W)

Audio Pre-selection Descriptor

N/A

Bluetooth Audio

Yes


Broadcasting System
Digital Broadcasting

XY : DVB-T(T2 Ready), XS : DVB-T2(VN : DVB-T2C), NZ : DVB-TS2(T2 Ready), GO : ATSC/ClearQAM, KR : ATSC 3.0, EN : DVB-T2CS2

DTV Sound System

Dolby

Analog Tuner

Yes

CI (Common Interface)

N/A

Smart Service
Operating System

Tizen™ 8.0

Supported

S.E Asia : SmartThing Pro, Samsung Business TV, Netflix, Amazon Prime, Google Play Movies & TV, Youtube, etc

GO/KR/EN/ETC : SmartThing Pro, VXT Player, Samsung Business TV, Web browser, Youtube, PlayLock


Feature
Orientation

Landscape

General
MBR Support

Yes

Smart
Multi Device Experience

Mobile to TV, Sound Mirroring, Wireless TV On

Workspace

Yes

Wireless Dex

Yes

Web Service

Microsoft 365

TVPlus

No

Multi-View

Yes


Accessibility
Low Vision Support

Audio Description, Zoom Menu and Text, High Contrast, SeeColors, Color Inversion, Grayscale, Picture Off

Hearing Impaired Support

Closed Caption (Subtitle), Multi-output Audio, Sign Language Zoom

Motor Impaired Support

Slow Button Repeat, Remote Control App. for All


Remote Control

Simple IR (S.E Asia : SolarCell BT)


Business TV Special
VXT CMS

S.E Asia : No

GO/KR/EN/ETC : Yes

PlayLock

S.E Asia : No

GO/KR/EN/ETC : Yes

BizTV App (Android, iOS)

Yes

On/Off timer

S.E Asia : No

GO/KR/EN/ETC : Yes

Autorun Signage(App auto launch)

S.E Asia : No

GO/KR/EN/ETC : Yes

App pre-installation

Yes

OTN On/Off

S.E Asia : No

GO/KR/EN/ETC : Yes

Security Lock
Panel button lock

S.E Asia : No

GO/KR/EN/ETC : Yes

USB port lock

S.E Asia : No

GO/KR/EN/ETC : Yes

Mobile Connection menu

S.E Asia : No

GO/KR/EN/ETC : Yes
